High-Temperature External Heating Type Rotary Kiln
Division for this product Divisi Plant Engineering & Machinery
Summary

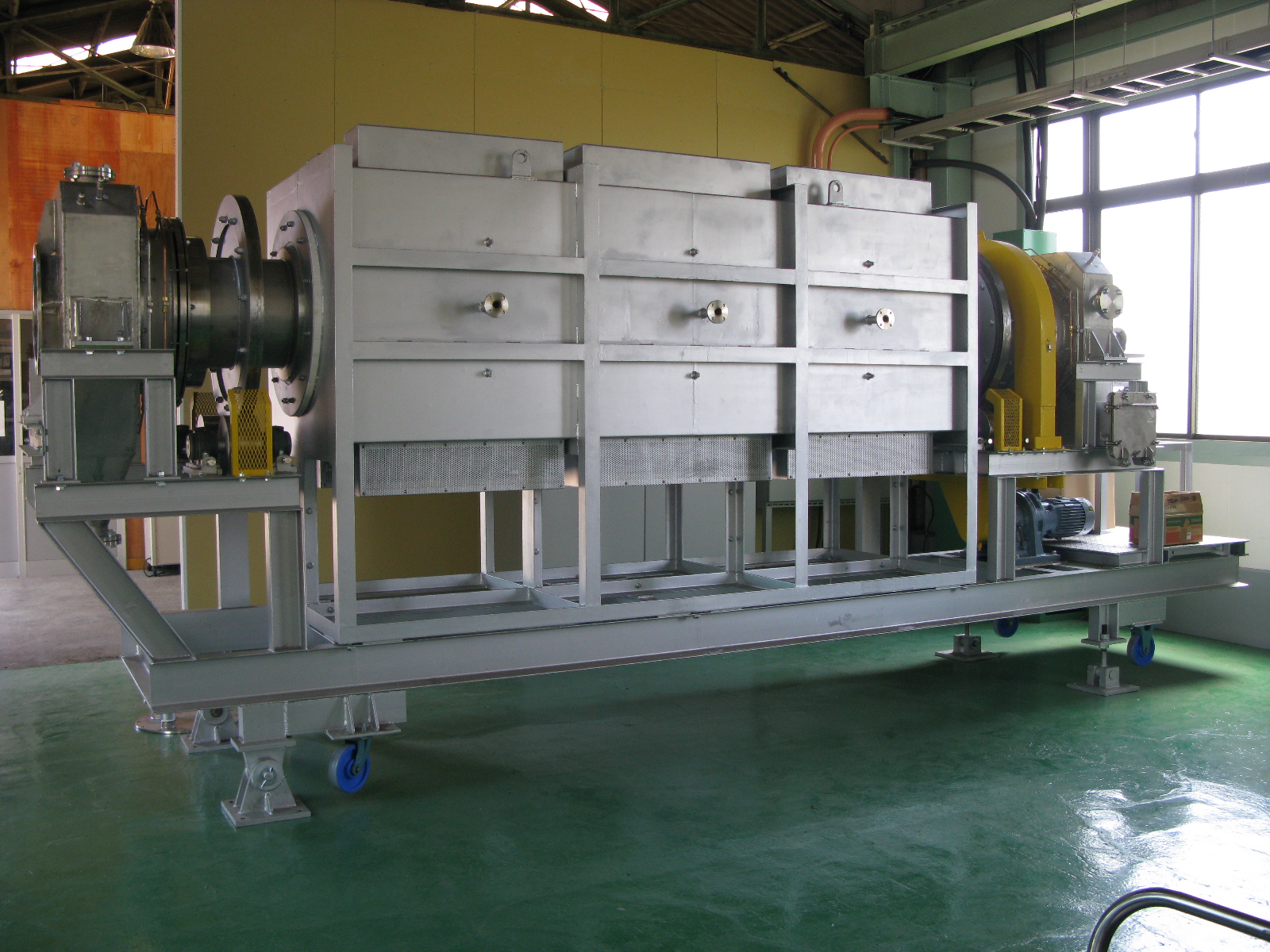

This machine is an indirect heating type of rotary kiln using ceramics for the retort material. Introducing the ceramic retort enables continuous heat treatment at a high temperature (approximately 1500oC) for nonmetallic materials to produce stable and high quality products.
Features
- High-temperature, continuous treatment enabled
- Easy replacement of ceramic retort according to objects
- Scraper mountable
- Severe atmosphere and temperature control (sealing performance to a maximum of±500Pa)
- Easy maintenance
- Compact installation area required
Specifications

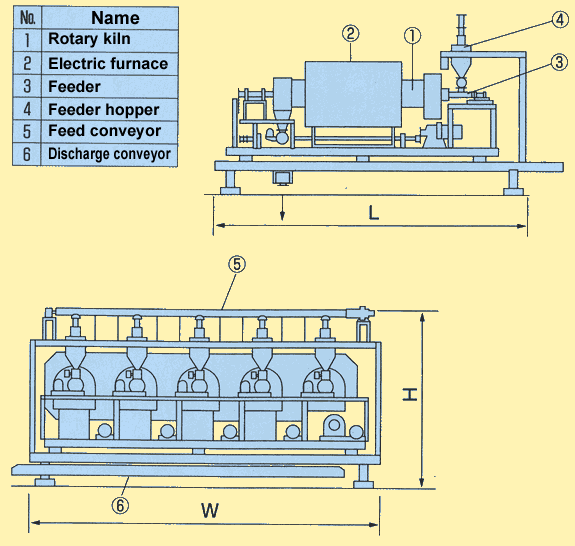

Type | Capacity (kg/Hr) | Number of retorts | Electric furnace capacity (kW) | Total length L (mm) | Total width W (mm) | Total height H (mm) |
---|---|---|---|---|---|---|
IRK-100 | 7 | 1 | 50 | 4800 | 1200 | 2650 |
IRK-200 | 14 | 2 | 100 | 4800 | 1800 | 2650 |
IRK-300 | 21 | 3 | 150 | 4800 | 2400 | 2650 |
IRK-400 | 28 | 4 | 200 | 4800 | 3000 | 2650 |
IRK-500 | 35 | 5 | 250 | 4800 | 3600 | 2650 |
