Dry-process Crushing and Sizing Machine Granulator
Division for this product Divisi Plant Engineering & Machinery
Note : Isi dari halaman ini ditulis dalam Bahasa Inggris
Features
Roll Granulator
- Rigid materials can be sized.
- With the Kurimoto granulator, you can adjust product sizes by changing the roll width and increasing the number of granulating stages.
Granulator with screen
- The screen mesh size can be changed with ease according to target particle sizes.
Structure

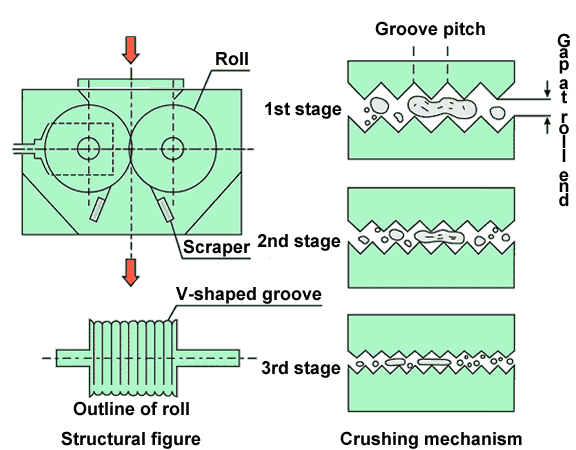

Roll Granulator

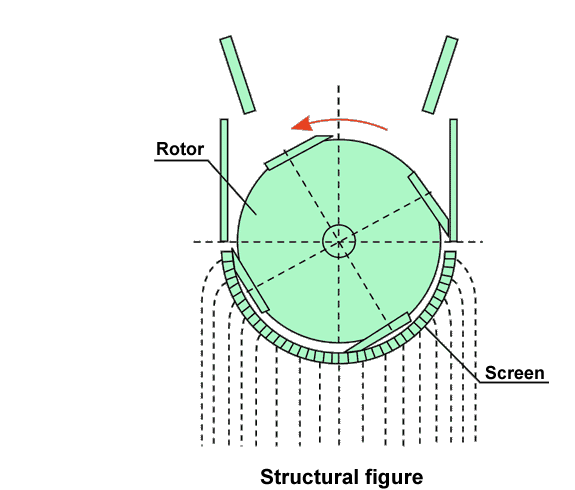

Granulator with screen
Specifications
Roll Granulator
| Model number | SizeoD×L | Capacity kg/h(reference value) | Power(kW) |
|---|---|---|---|
| RG-0610 | o60×100mm | 30 | 0.2 |
| RG-1010 | o100×100mm | 50 | 0.4 |
| RG-1215 | o120×150mm | 90 | 0.75 |
| RG-1225 | o120×250mm | 150 | 0.75 |
| RG-1235 | o120×350mm | 210 | 0.75 |
| RG-1545 | o150×450mm | 350 | 1.5 |
| RG-2060 | o200×600mm | 600 | 1.5 |
| RG-2575 | o250×750mm | 940 | 2.2 |
| RG-3090 | o300×900mm | 1350 | 3.7 |
Granulator with screen
| Model number | SizeoD×L | Capacity kg/h(reference value) | Power(kW) |
|---|---|---|---|
| RGS-0810 | o80×100mm | 40 | 0.4 |
| RGS-1012 | o100×120mm | 50 | 0.4 |
| RGS-1512 | o150×120mm | 90 | 0.75 |
| RGS-1525 | o150×250mm | 140 | 0.75 |
| RGS-1530 | o150×300mm | 220 | 1.5 |
| RGS-2040 | o200×400mm | 400 | 1.5 |
| RGS-2550 | o250×500mm | 650 | 2.2 |
| RGS-3060 | o300×600mm | 900 | 2.2 |
| RGS-3570 | o350×700mm | 1250 | 3.7 |
