CLP series: BLANKING PRESS LINE3,000kN to 12,000kN

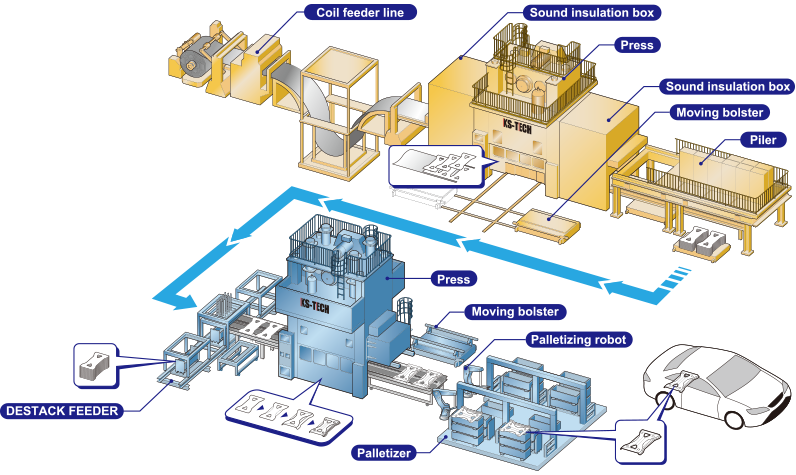

The press machine processes the material fed from the coil feeder line and the piler automatically pile up them.
A moving bolster performs automatic metallic mold exchange.

Features

It is available with progressive press processing and strongly propulsion the efficiency of the production site.
High rigidity enables transfer press line ultra-high tensile strength steel (Ultra High tension) to be produced.
Enhanced support with RMSS
Improve operating rate with ADC fastest machine
High operation rate due to high productivity

The record photo book is here

Improve production line efficiency and cost reduction!Press machine

BLANKING PRESS LINE/ 3,000 to 12.000kN
The press machine processes the material fed from the coil feeder line and the piler automatically pile up them.
A moving bolster performs automatic metallic mold exchange.

Transfer press line
A pressing machine processes the blank material supplied one sheet at a time from DESTACK FEEDER, and Palletizer　stores in a palette automatically.
A moving bolster performs automatic metallic mold exchange.

Download of PDF data

CLT series: TRANSFER PRESS LINE3,000kN to 35,000kN

A pressing machine processes the blank material supplied one sheet at a time from DESTACK FEEDER, and Palletizer stores in a palette automatically.
A moving bolster performs automatic metallic mold exchange.

Features

By a powerful network function with incidental facilities, the central control of set up and production data is possible.
Enhanced support with RMSS
Increase operating ratio by ADC fastest machine
Realization of high production and high speed by fusion with linear

The record photo book is here

Improve production line efficiency and cost reduction!Press machine

Download of PDF data

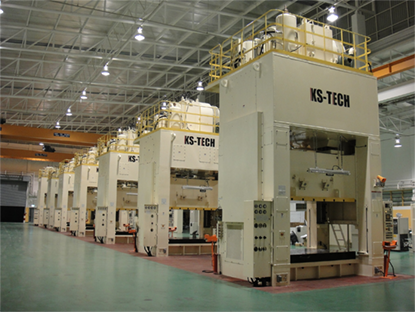

TANDEM SERIES 3,000kN to 20,000kN

Advanced technology and abundant know-how
High versatility and corresponding to various press processes.
Efficient production is possible by combination with the conveying device between presses.

The record photo book is here

ServoPress12,000kN +Diecushon300～2,000kN

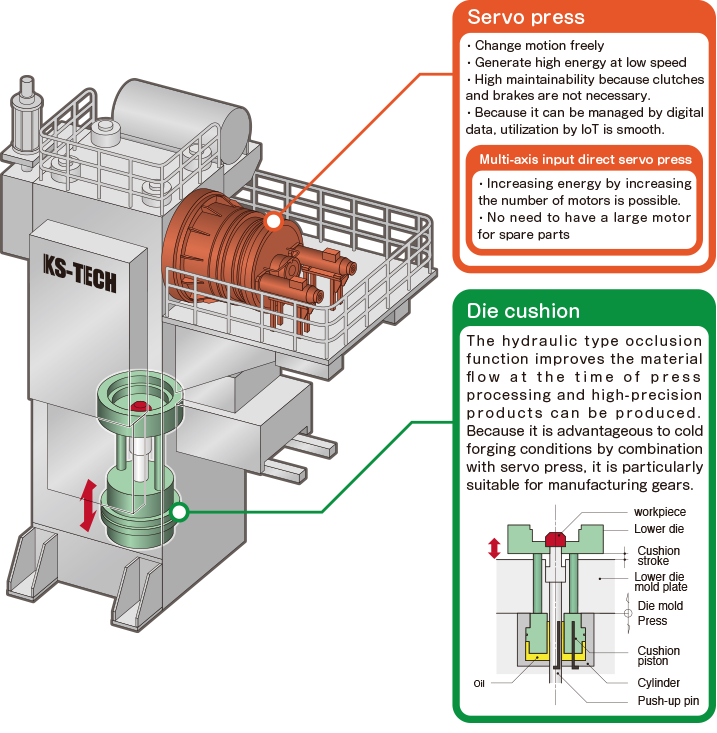

Features of KS-TECH servo press

Multi-axis input type direct servo press
This simple crankshaft structure is driven by a combination of 2 units (or 3 units) 200kW servomotors that are easily available with a 12,000kN servo press and a planetary reduction gear with high mechanical efficiency (with a safety brake).
Die cushion standard equipment (compatible with die cushion capacity 300 to 2,000 kN)
Because it is advantageous to cold forging conditions by combination with servo press, it is particularly suitable for manufacturing gears.

Difference between servo press and mechanical press

The mechanical press can only perform constant motion.
Since the servo press can set free motion and can emit energy with low-speed motion, the lifetime of the die mold is extended.

Features of servo press

Change motion freely
Generate high energy at low speed
High maintainability because clutches and brakes are not necessary
Because it can be managed by digital data, utilization by IoT is smooth

Download of PDF Data

MACS series (cutting machine) 3,000kN to 6,000kN

Excellent operability with strong structure and versatile functions
Excellent in eco and high quality!

Features

Simple structure without gears and clutch brakes reduces power consumption by 25%.
Speed-up of cutting speed improves cutting accuracy and it can efficiently produce billet suitable for precision fully-enclosed die forging.
In conventional cutting machines, it is possible to cut soft materials and nonferrous materials which are difficult to cut.
Prepare the variation according to capacity (3,000kN to 6.000kN)
The installation area realizes space saving.
Mold change can be done in a short time with a single touch.
Besides standard equipment for mold changer, an optional mold changer is also available.

The record photo book is here

Corresponding for linear servo feeder4,000kN - 20,000kN press machine

Strengthen the existing facilities (from mechanical transfer to servo transfer).
Improve productivity with flexible motion and stable feed control

Features

Corresponds to press machines of every manufacturer.
It is possible to freely customize using the original control software of KS-TECH.
Since the linear servo motor is adopted as the feed axis, space saving is realized.
Since it is a simple driving mechanism, high-speed stable conveyance is realized.

Equipment outline - Processing machinery -

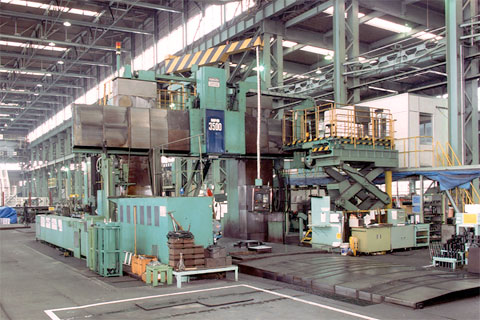

Numerical Control Plano-Miller(5-face milling machine nt)

MPB-3580B

Equipment specification
Gate height	3,500 mm
Gate width	3,500 mm
Maximum table stroke	8,300 mm
Maximum loading mass	75 ton

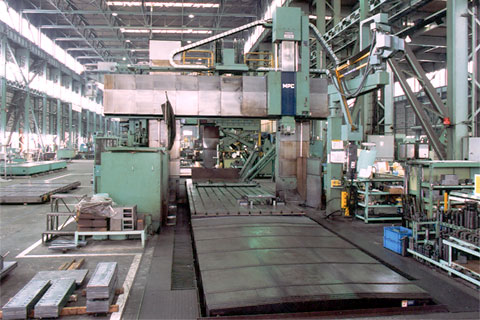

Numerical Control Plano-Miller(5-face milling machine nt)

MPC-3165B

Equipment specification
Gate height	2,440 mm
Gate width	3,100 mm
Maximum table stroke	7,500 mm
Maximum loading mass	40 ton

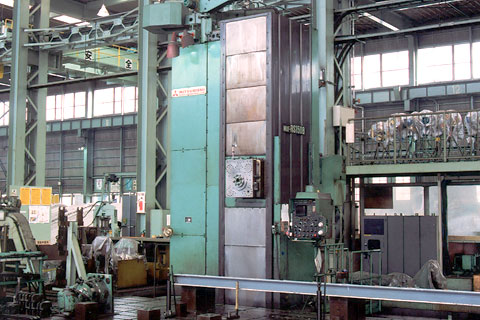

Milling horizontal boring and combined machine tool

MAF-RS 150B-NC

Equipment specification
Column travel	10,000 mm
Maximum processing height	3,500 mm
Rotary table	3,000 mm × 2,500 mm
Maximum loading mass	30 ton

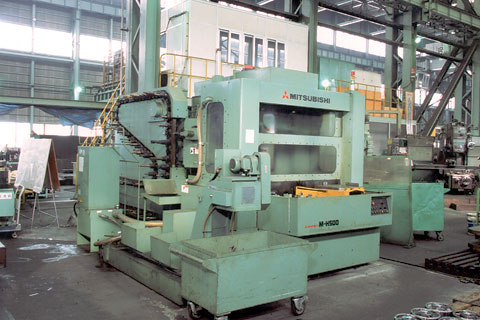

Machining center

M-H50D

Equipment specification
X axis travel	1,080 mm
Y axis travel	680 mm
Z axis travel	780 mm
Table size	500 mm × 2 pallet
Maximum loading mass	800 kg

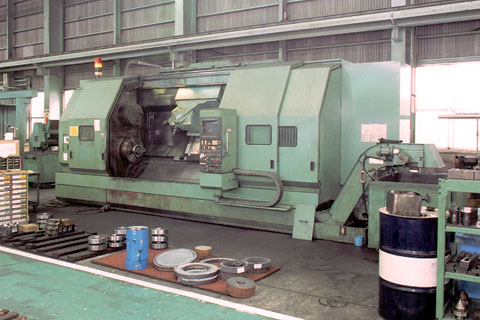

Combined lathe

INTEGREX60

Equipment specification
Maximum processing diameter	915 mm
Maximum processing length	3,000 mm
Maximum support mass	3,000 kg

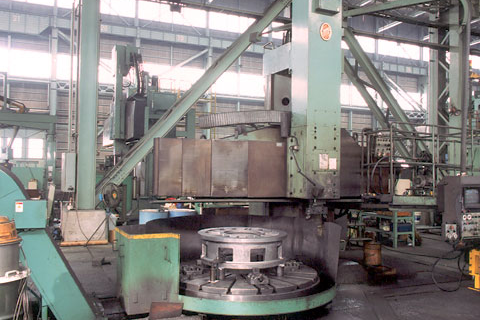

CNC Vertical Lathe(turning)

TMS2-20/40N

Equipment specification
Maximum turning outer diameter	4,000 mm
Maximum turning height	1,600 mm
Table diameter	2,000 mm
Maximum loading mass	20 ton

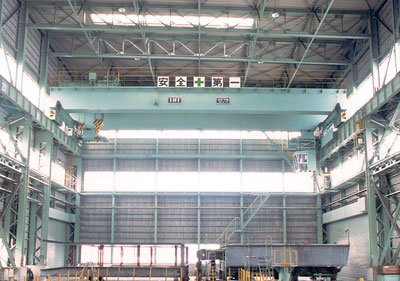

Overhead travelling crane

Equipment specification
Lifting capacity	80 ton /20 ton
Pump-head	21 m
Span	24.1 m
